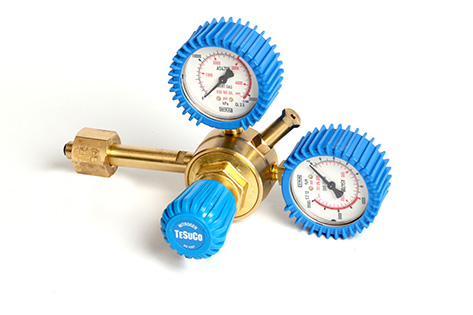

Nitrogen Regulator High Pressure
This is Nitrogen regulator is a higher pressure range regulator but is still a Type 50 valve outlet , with side entry and is single stage. A Type 50 valve outlet, means that the external thread is right handed, and has an internal angled sealing face, with an outside diameter thread of 24.0mm, with the centre hole dimensions of 13.3mm x 8.1mm deep.
The maximum inlet pressure of this regulator is 30,000kPa and the maximum outlet pressure of this nitrogen regulator is 6000kPa. The regulator comes with a safety relief valve and gauge protectors around the outsides of the pressure gaugesn
Like all of our regulators this nitrogen regulator and the pressure gauges comply with Australian Standards, AS number 4706. Thus it will fit directly on to your existing cylinder with an Australian compliant Type 50 valve outlet.
